MVE + Consarctic Cryobank

Article:
Price:
Production: USA
USA
Description

Cryobank Consarctic + MVE is formed on the basis of classic cryostorages from MVE Biological Solutions (USA) and software cryo-freezers from Consarctic GmbH (Germany). MVE produces a wide range of cryostorages for storing any formats of biosamples (cryopacks, cryovials, cryostraws, etc.).

Currently, the method of storing frozen biosamples in liquid nitrogen (-196 o C) is considered outdated and unsafe due to possible cross-contamination, difficulties in handling racks in liquid nitrogen, and a gradual increase in icing inside the cryostorage.

MVE offers solutions without these shortcomings:

- storage in liquid nitrogen vapor at a temperature below minus 150°C, at which liquid nitrogen occupies a small column 20-25 cm high at the bottom of the cryostorage, and the storage system is located above the liquid column in liquid nitrogen vapor;

- storage in the dry gas phase (DryStorage) at a temperature below minus 180°C, in which the storage area of ​​biosamples is separated from the vertical cavity with liquid nitrogen along the entire height of the cryostorage by a thin metal barrier. This makes it possible to maintain a temperature close to the temperature of liquid nitrogen over the entire height of the cryo-storage with a minimum gradient, while the biosamples are in the dry gas phase.

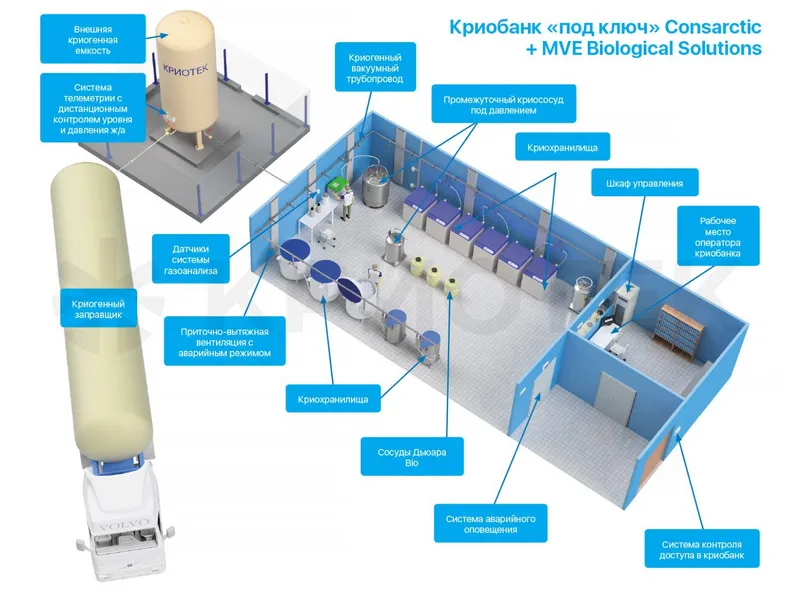

Such a cryobank may include a state-of-the-art cryogenic infrastructure, a control system for automatic fueling, gas analysis and ventilation, as well as a database with the history of biosamples.

For this product we recommend

Cryocontroller S110 Sintesy

Cryocontroller S110 Sintesy

Cryocontroller S110 Sintesy is a programmable logic controller with a display and control buttons on a DIN rail for a cryobank/biobank basic control and monitoring.
GSM/GPRS module S140 Sintesy

GSM/GPRS module S140 Sintesy

S140 GSM/GPRS module is designed to send data information about events in the cryobank. SMS\Еmail\voice messages.
Cryocontroller S170 Sintesy

Cryocontroller S170 Sintesy

S170 is a device designed to control temperature and level of liquid nitrogen in cryogenic tanks.
Access control S180 and S182 Sintesy

Access control S180 and S182 Sintesy

S180, S182 is a system for providing access control to the cryobank/biobank rooms.
Light indication S185 Sintesy

Light indication S185 Sintesy

S185 "traffic light"- light and sound alarm.
Pipe cooling button S187 Sintesy

Pipe cooling button S187 Sintesy

Pipe cooling button S187 Sintesy is a button for autonomous control and monitoring of cooling of the cryogenic pipelines, controlled from a cryobank/biobank.
Emergency button S188 Sintesy

Emergency button S188 Sintesy

Emergency button S188 Sintesy - Emergency alarm button that allows users inside the cryobank/biobank to activate alarms and emergency measures.
Cryocontroller S-200.smart Sintesy

Cryocontroller S-200.smart Sintesy

Cryocontroller S-200.smart Sintesy is a remote monitoring device that can display the operating conditions of remote telemetry modules RTU in the SINTESY.eagle surveillance and control system.
Cryocontroller S-300.smart Sintesy

Cryocontroller S-300.smart Sintesy

Cryocontroller S-300.smart Sintesy is a programmable logic controller (PLC) for automation and full control of the cryobank/biobank status and a cryogenic pipeline with liquid nitrogen.
Probes and sensors S116 Sintesy

Probes and sensors S116 Sintesy

S116 - meters and sensors
Industrial computer S160-51(2) Sintesy

Industrial computer S160-51(2) Sintesy

S160-51 (2) - industrial computer for monitoring and control a cryobank/biobank with a database and user interface.
Data logger S2000 Sintesy

Data logger S2000 Sintesy

S2000 data logger with USB-connector is designed for remote monitoring and control of the laboratory with installed equipment.
Universal sensor S-210.smart Sintesy

Universal sensor S-210.smart Sintesy

Universal sensor S-210.smart Sintesy - temperature, level, oxygen sensors, etc.
Sintesy.eagly.cryo software

Sintesy.eagly.cryo software

Sintesy software is designed to automate and control a cryobank / biobank; analysis of nitrogen flow, pressure, level; event storage; biological sample registration and tracking program; emergency protection ...
