MVE HE 1536P-190
Article:
Временно недоступен для заказа
Price:
Production: USA

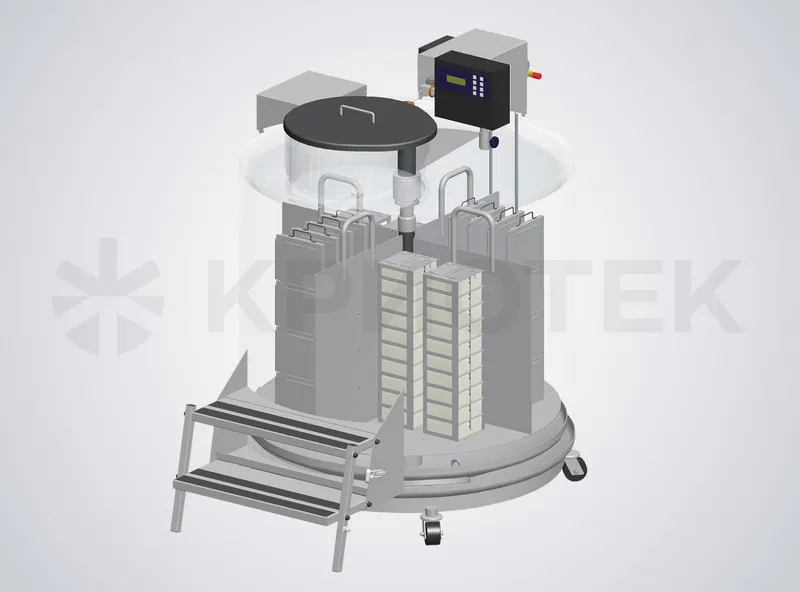

The MVE HE 1536P-190 cryogenic storage facility provides storage for up to 36,400 1.2 / 2.0 ml vials. Available in three unique sizes, these cryopreservers provide the highest sample density and the longest storage time.
Comes with TEC 3000 electronics.
Distinctive features:
- Storage of samples in the dry phase
- The temperature on the top shelf of the rack is -190°C
- Lowest lifting height of the sample loading/unloading rack
- Largest liquid nitrogen capacity up to platform level
- 2-step folding stand
- Backup battery (optional)
Spare parts warranty 2 years * Vacuum system warranty 5 years
| Maximum storage capacity | |
| Test tubes of 1.2 and 2 ml (with internal thread) | 36400 |

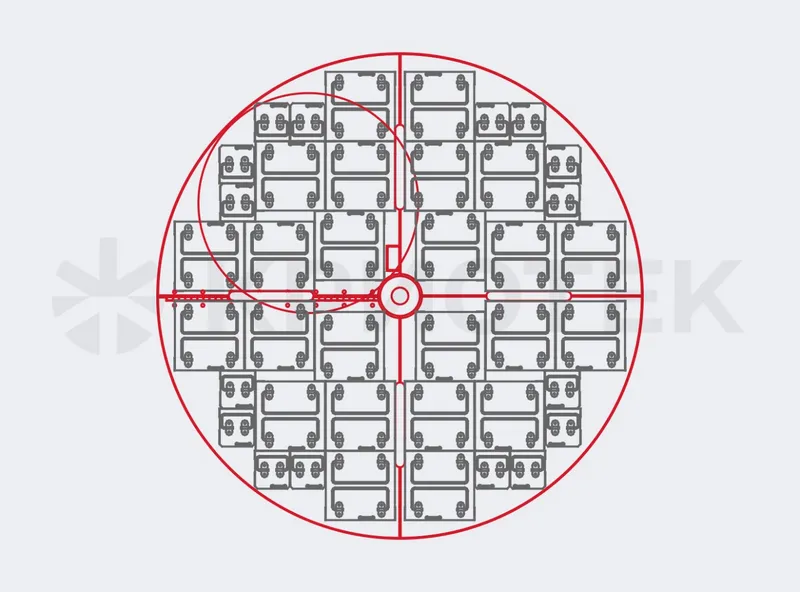

| Number of cryobox racks per 100 cells | 24 |
| Number of mini racks for cryoboxes for 25 cells | 16 |
| Number of shelves in the rack | 13 |
| Operational characteristics | |
| Volume of liquid nitrogen for filling cryopreservation without storage system, calculated | 756 l |
| Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated | 133 l |
| Cryopreservation dimensions | |
| Internal diameter of the neck | 445 mm |
| Usable internal height | 732 mm |
| Inner diameter | 978 mm |
| Total height, including autofill system | 1556 mm |
| Lifting height of the rack for loading into the cryopreservation | 942 mm |
| Required width of the doorway** | 1067 mm |
| Extended step depth | 201 mm |
| Empty cryopreservation weight * | 313 kg |
| Weight of liquid nitrogen cryopreservation*, calculated | 924 kg |

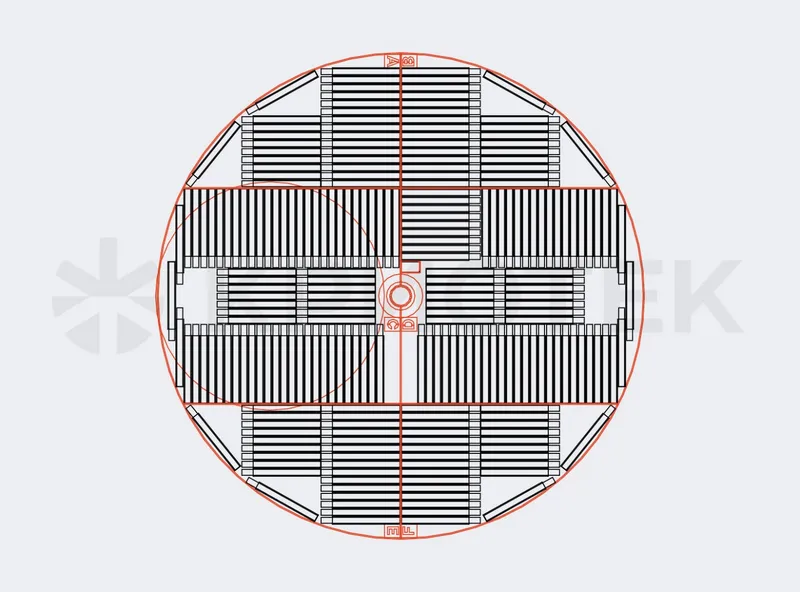

| Cryopackage capacity | Total packages | Packages per frame | Quantity of frames |
| 791 OS/U Medsep (25 ml) | 2905 | 7 | 415 |
| 4R9951 (50 ml) | 1488 | 6 | 248 |
| 4R9953 (250 ml) | 812 | 4 | 203 |
| 4R9955 (500 ml) | 608 | 4 | 152 |
| DF200 (200 ml) | 496 | 4 | 124 |
| DF700 (700 ml) | 256 | 4 | 64 |
* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
