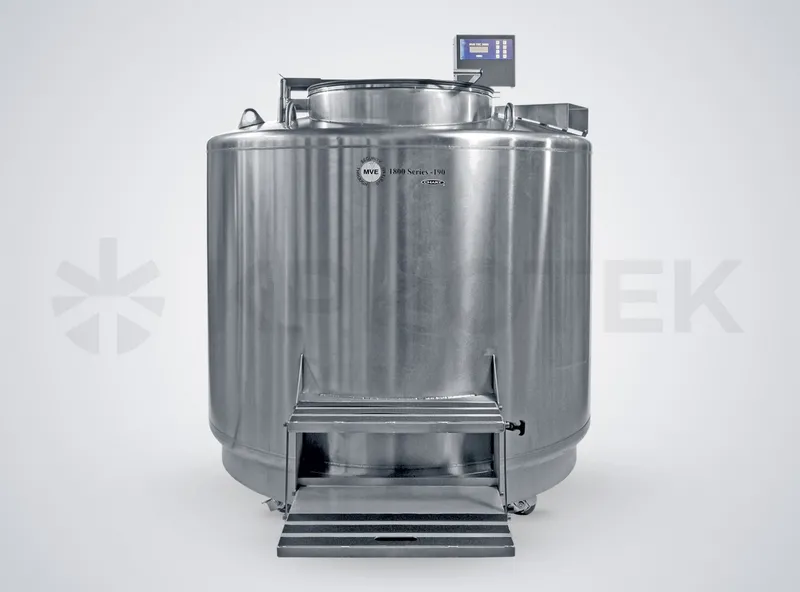

MVE HE 1879P-190

Article:

Временно недоступен для заказа

Price:

Production: USA

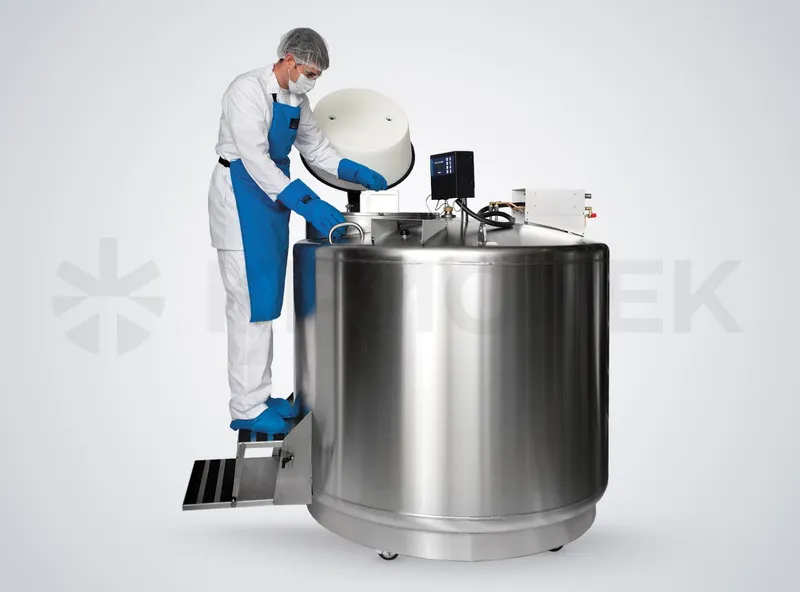

Криохранилище серии MVE HE 1800 с обслуживающим персоналом_action

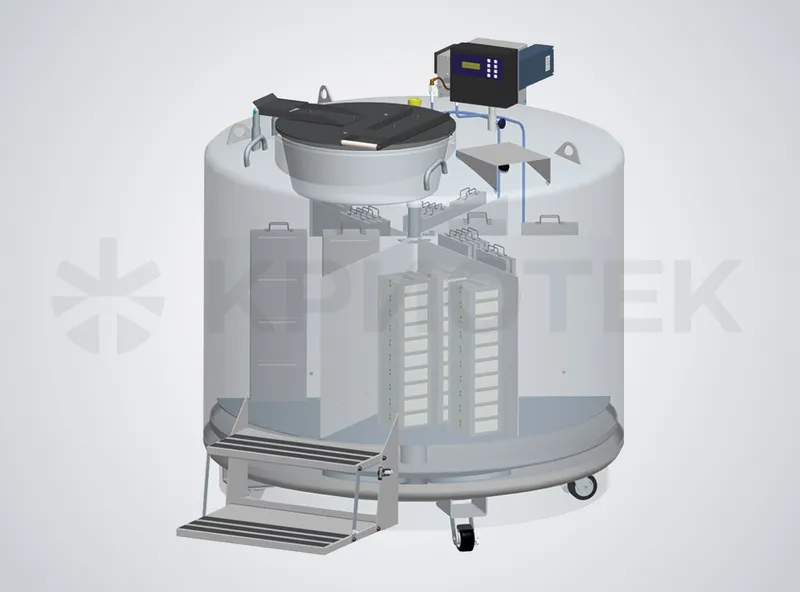

Внутренний разрез криохранилища серии MVE HE 1800

Description Characteristics

Avenue

The MVE HE 1879 P-190 cryostore holds up to 79950 1.2 / 2.0 ml vials and provides the highest density of biomaterial placement and the longest storage time.

Comes with TEC 3000 electronics.

Distinctive features:

Storage of samples in the dry phase

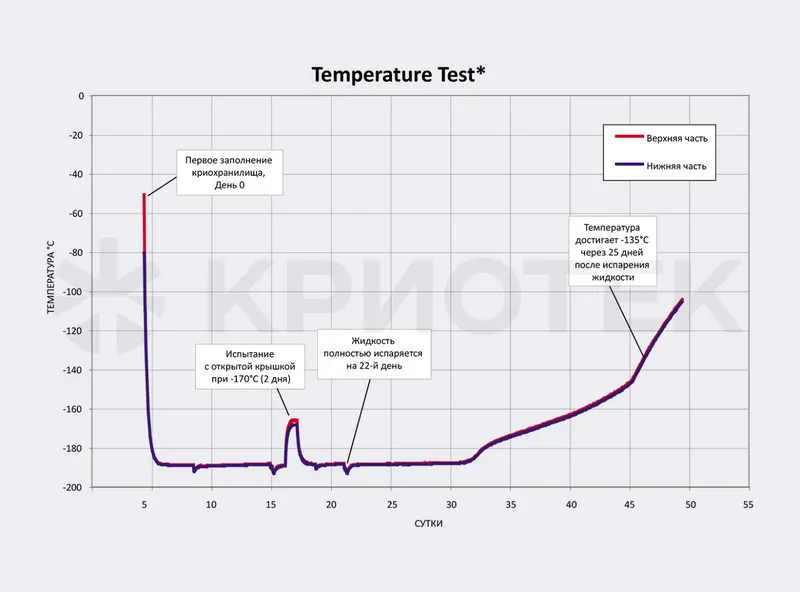

The temperature on the top shelf of the rack is -190°C
Lowest lifting height of the sample loading/unloading rack
Largest liquid nitrogen capacity up to platform level
2-step folding stand
Backup battery (optional)

Spare parts warranty 2 years * Vacuum system warranty 5 years

Maximum storage capacity
Test tubes of 1.2 and 2 ml (with internal thread)	79950
Number of cryobox racks per 100 cells	54
Number of mini racks for cryoboxes for 25 cells	30
Number of shelves in the rack	13
Operational characteristics
Volume of liquid nitrogen for filling cryopreservation without storage system, calculated	1516 l
Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated	292 l
Cryopreservation dimensions
Internal diameter of the neck	635 mm
Usable internal height	749 mm
Inner diameter	1422 mm
Total height, including autofill system	1732 mm
Required width of the doorway**	1524 mm
Empty cryopreservation weight *	781 kg
Weight of liquid nitrogen cryopreservation*, calculated	2191 kg

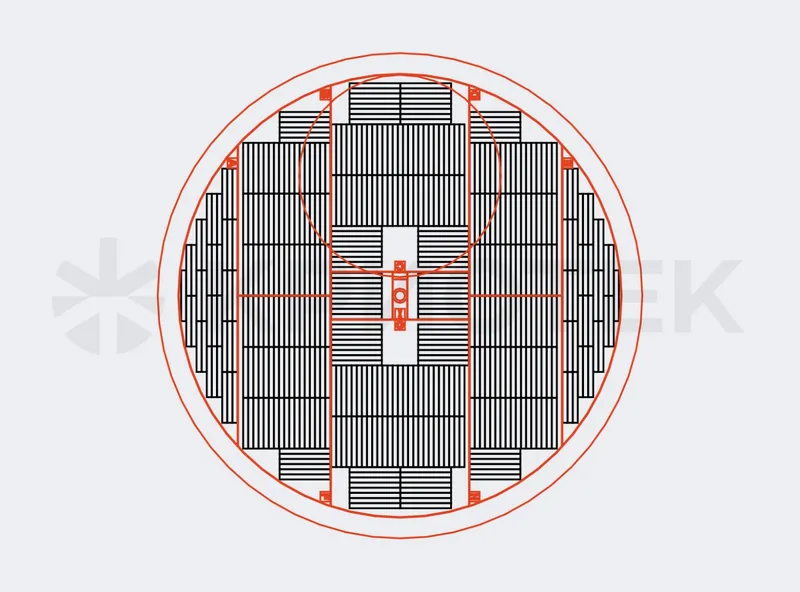

Cryopackage capacity	Total packages	Packages per frame	Quantity of frames
791 OS/U Medsep (25 ml)	5866	7	838
4R9951 (50 ml)	2952	6	492
4R9953 (250 ml)	1584	4	396
4R9955 (500 ml)	1104	4	276
DF200 (200 ml)	960	4	240
DF700 (700 ml)	504	4	126

* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
