MVE HE 1892P-190

Article:
Временно недоступен для заказа
Price:
Production: USA
USA
Description Characteristics
Avenue

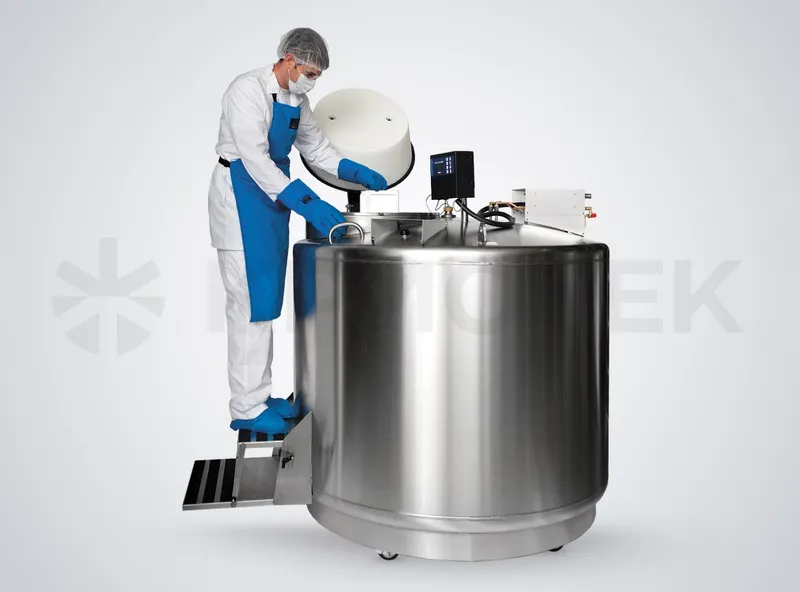

The MVE HE 1892P-190 cryostore holds up to 92250 1.2 / 2.0 ml vials and provides the highest density of biomaterial placement and the longest storage time.

Comes with TEC 3000 electronics.

Distinctive features:

  • Storage of samples in the dry phase
  • The temperature on the top shelf of the rack is -190°C
  • Lowest lifting height of the sample loading/unloading rack
  • Largest liquid nitrogen capacity up to platform level
  • 2-step folding stand
  • Backup battery (optional)



Spare parts warranty 2 years * Vacuum system warranty 5 years

Maximum storage capacity
Test tubes of 1.2 and 2 ml (with internal thread) 92250

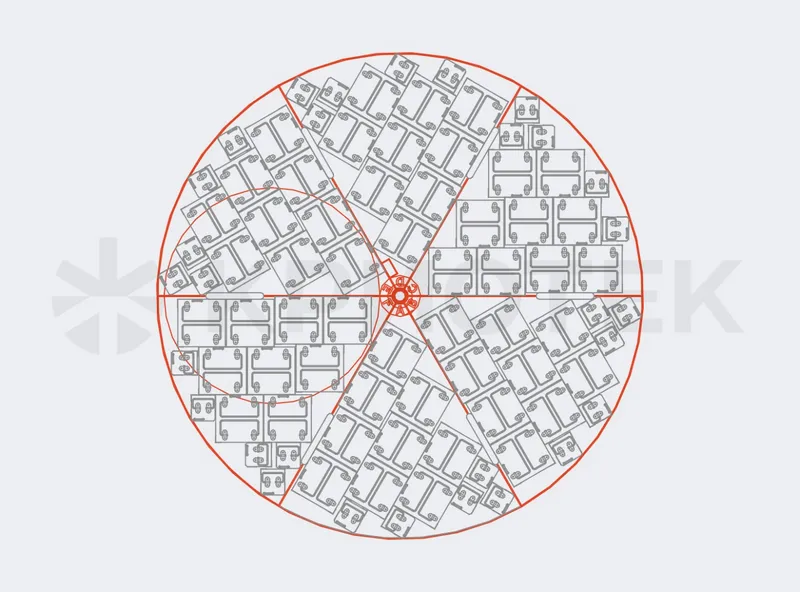

Number of cryobox racks per 100 cells 54
Number of mini racks for cryoboxes for 25 cells 30
Number of shelves in the rack 15
Operational characteristics
Volume of liquid nitrogen for filling cryopreservation without storage system, calculated 1736 l
Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated 282 l
Cryopreservation dimensions
Internal diameter of the neck 635 mm
Usable internal height 876 mm
Inner diameter 1391 mm
Total height, including autofill system 1860 mm
Required width of the doorway** 1524 mm
Empty cryopreservation weight * 781 kg
Weight of liquid nitrogen cryopreservation*, calculated 2211 kg

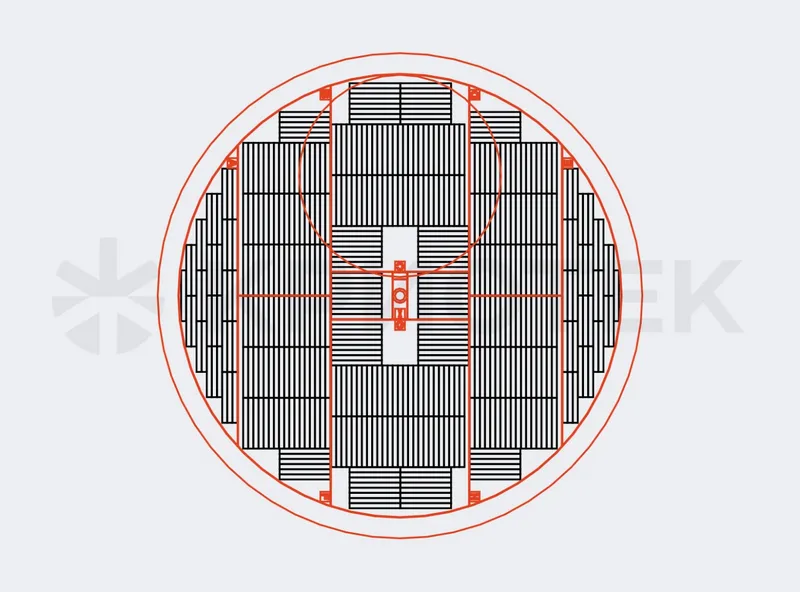

Cryopackage capacity Total packages Packages per frame Quantity of frames
791 OS/U Medsep (25 ml) 6704 8 838
4R9951 (50 ml) 3936 8 492
4R9953 (250 ml) 1980 5 396
4R9955 (500 ml) 1380 5 276
DF200 (200 ml) 1200 5 240
DF700 (700 ml) 630 5 126



* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
