MVE HE 1894R-190
Article:
Временно недоступен для заказа
Price:
Production: USA

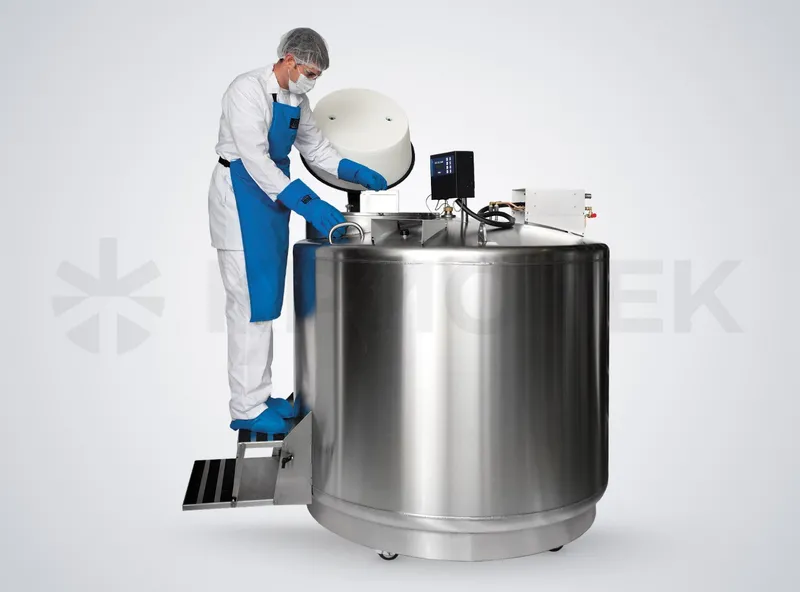

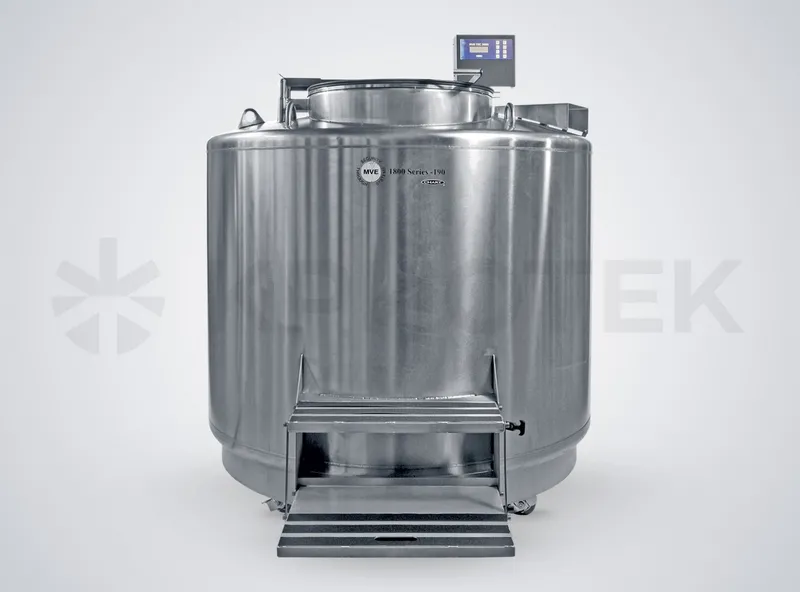

The MVE HE 1894R-190 cryostore holds up to 94,500 1.2 / 2.0 ml vials and provides the highest density of biomaterial placement and the longest storage time.
Comes with TEC 3000 electronics.
Distinctive features:
- Storage of samples in the dry phase
- The temperature on the top shelf of the rack is -190°C
- Lowest lifting height of the sample loading/unloading rack
- Largest liquid nitrogen capacity up to platform level
- 2-step folding stand
- Backup battery (optional)
Spare parts warranty 2 years * Vacuum system warranty 5 years
| Maximum storage capacity | |
| Test tubes of 1.2 and 2 ml (with internal thread) | 94500 |
| Number of cryobox racks per 100 cells | 60 |
| Number of mini racks for cryoboxes for 25 cells | 12 |
| Number of shelves in the rack | 15 |
| Operational characteristics | |
| Volume of liquid nitrogen for filling cryopreservation without storage system, calculated | 1731 l |
| Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated | 300 l |
| Cryopreservation dimensions | |
| Internal diameter of the neck | 635 mm |
| Usable internal height | 868 mm |
| Inner diameter | 1391 mm |
| Total height, including autofill system | 1860 mm |
| Required width of the doorway** | 1524 mm |
| Empty cryopreservation weight * | 781 kg |
| Weight of liquid nitrogen cryopreservation*, calculated | 2211 kg |
| Cryopackage capacity | Total packages | Packages per frame | Quantity of frames |
| 791 OS/U Medsep (25 ml) | 6432 | 8 | 804 |
| 4R9951 (50 ml) | 3920 | 8 | 490 |
| 4R9953 (250 ml) | 2010 | 5 | 402 |
| 4R9955 (500 ml) | 1550 | 5 | 310 |
| DF200 (200 ml) | 1230 | 5 | 246 |
| DF700 (700 ml) | 680 | 5 | 136 |
* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
For this product we recommend
MVE + Consarctic Cryobank
Cryobank Consarctic + MVE is formed on the basis of classic cryostorages from MVE Biological Solutions (USA) and software cryo-freezers from Consarctic GmbH (Germany).
Cryocontroller S170 Sintesy
S170 is a device designed to control temperature and level of liquid nitrogen in cryogenic tanks.
BV45
Universal program cryogenic freezer.Cryogenic freezing of living cells, transplants and other biomaterials at a temperature down to -196°C.
BV65
BIOFREEZE BV65 - a portable biological program freezer for cryo-tubes, cryostraws and ampoules. Reliable and efficient cryogenic storage of embryos, cells, oocytes, sperm, blood, etc.
Cryogloves CryoKit 400-550
CryoKit 400-550 gloves are made of special composite two-component material with polyurethane membrane, completely waterproof. Intended for protection of hands and arms of hands during work with liquid ...
Face protection goggles Vision-Cryo
Closed glasses-mask Vision-Cryo are designed to protect the eyes from drops, splashes, etc. when handling with liquid nitrogen.
Face protection mask Clear-Cryo
The Clear-Cryo face mask is designed to protect the face, front of the head and neck from splash, dripping, splashing, etc. when handling with liquid nitrogen or other cryogenic liquids.
Probes and sensors S116 Sintesy
S116 - meters and sensors
Популярное
Laboratory module WB-230
Laboratory module WB-230 with cryogenic working area and three independent program freezers.

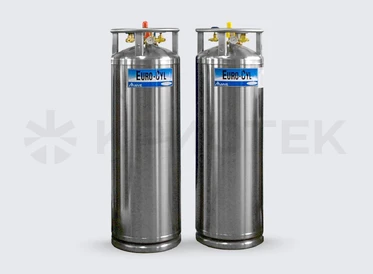

EC-180/4
