MVE HE 815P-190
Article:
Price:
Production: USA

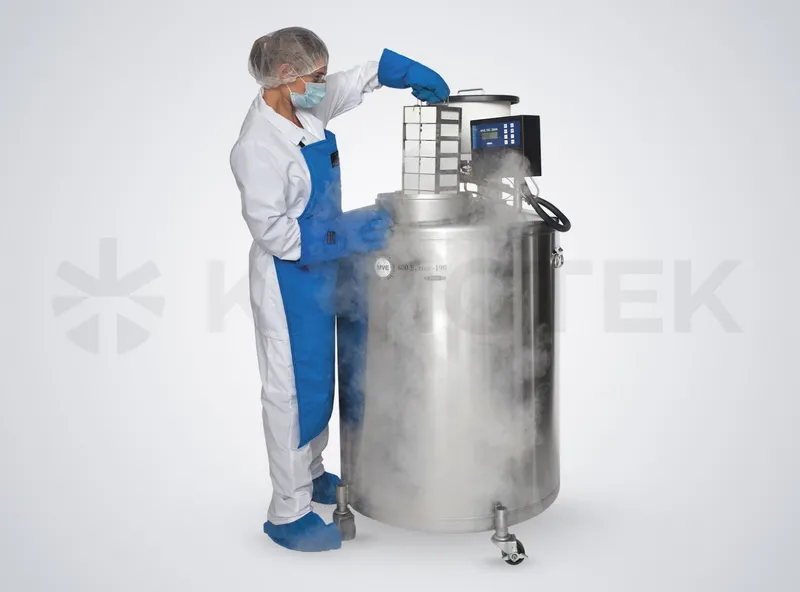

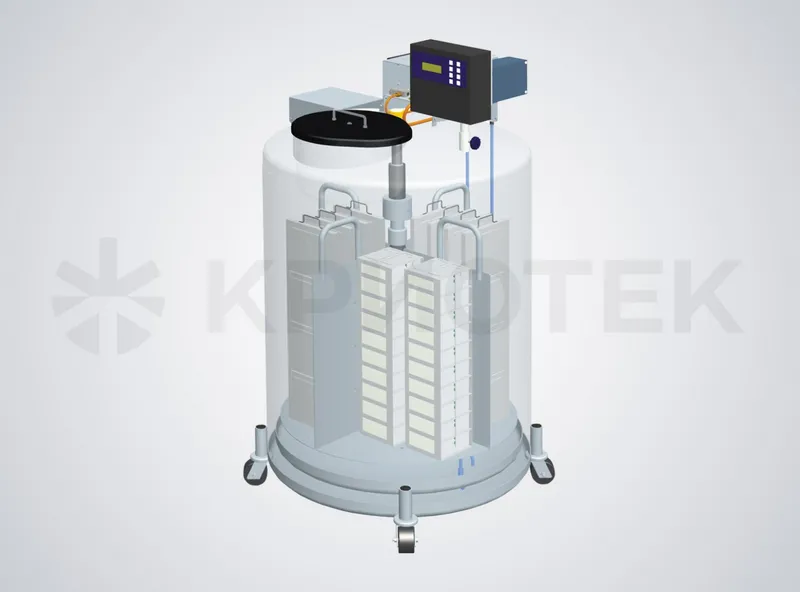

The MVE High Efficiency 800 series cryopreservers provide storage of biomaterials in liquid nitrogen vapors at a temperature of -190°C. Available in three unique sizes, they provide maximum sample density and long storage time.
Comes with TEC 3000 electronics.
Distinctive features:
- Storage of samples in the dry phase
- The temperature on the top shelf of the rack is -190°C
- Lowest lifting height of the sample loading/unloading rack
- Largest liquid nitrogen capacity up to platform level
- Backup battery (optional)
Spare parts warranty 2 years
Vacuum system warranty 5 years
| Maximum storage capacity | |
| Test tubes of 1.2 and 2 ml (with internal thread) | 15600 |

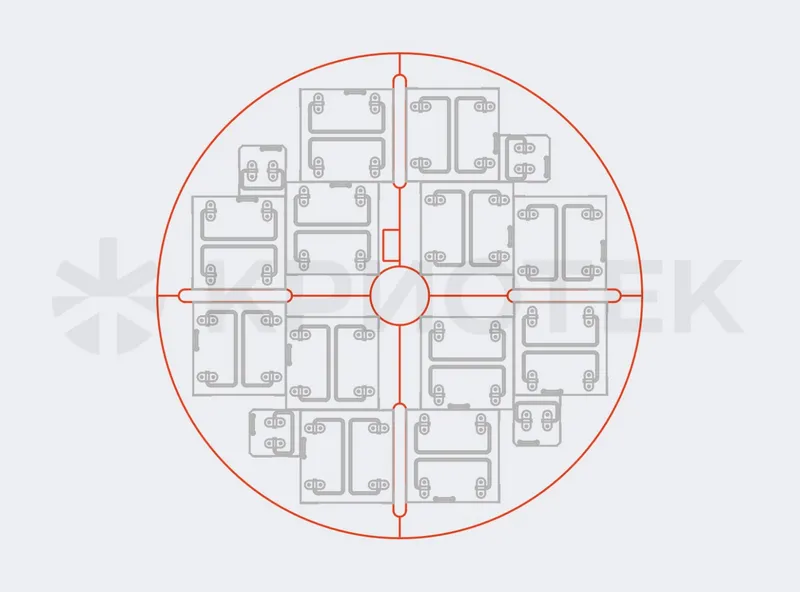

| Number of cryobox racks per 100 cells | 12 |
| Number of mini racks for cryoboxes for 25 cells | 4 |
| Number of shelves in the rack | 12 |
| Operational characteristics | |
| Volume of liquid nitrogen for filling cryopreservation without storage system, calculated | 370 l |
| Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated | 52 l |
| Cryopreservation dimensions | |
| Internal diameter of the neck | 317 mm |
| Usable internal height | 673 mm |
| Inner diameter | 731 mm |
| Total height, including autofill system | 1448 mm |
| Required doorway width** | 813 mm |
| Required doorway width for cryo storage with handles ** | 843 mm |
| Empty cryopreservation weight * | 215 kg |
| Weight of liquid nitrogen cryopreservation*, estimated | 514 kg |

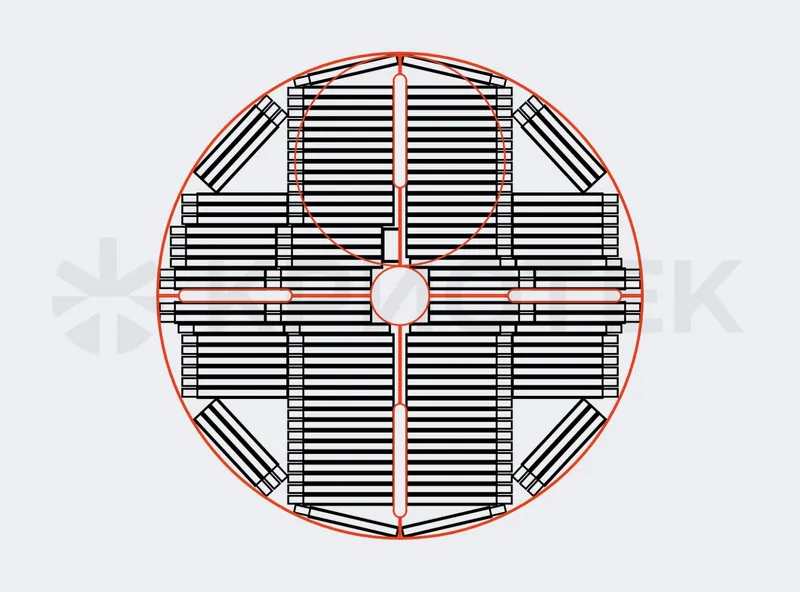

| Cryopackage capacity | Total packages | Packages per frame | Quantity of frames |
| 791 OS/U Medsep (25 ml) | 1224 | 6 | 204 |
| 4R9951 (50 ml) | 768 | 6 | 128 |
| 4R9953 (250 ml) | 416 | 4 | 104 |
| 4R9955 (500 ml) | 304 | 4 | 76 |
| DF200 (200 ml) | 236 | 4 | 59 |
* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
