MVE HE 818P-190

Article:

Нет в наличии

Price:

Production: USA

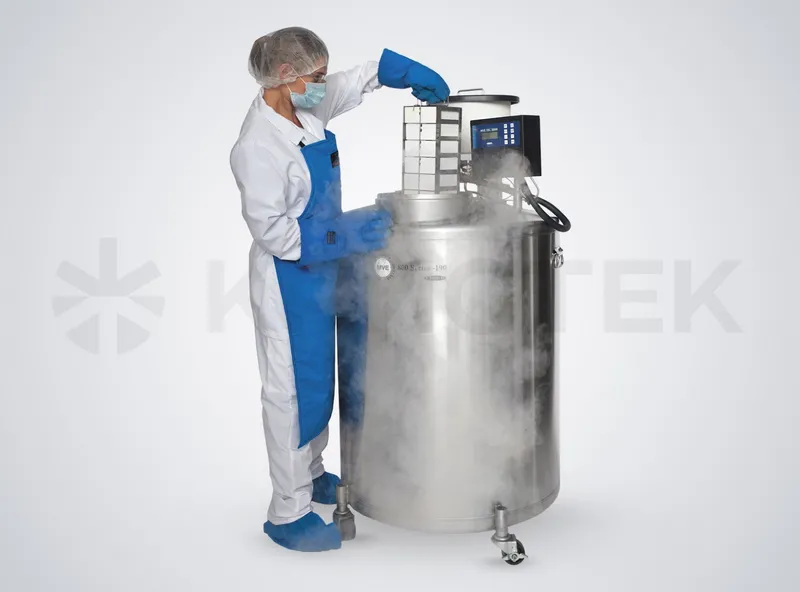

Криохранилище серии MVE HE 800 с обслуживающим персоналом-action-1

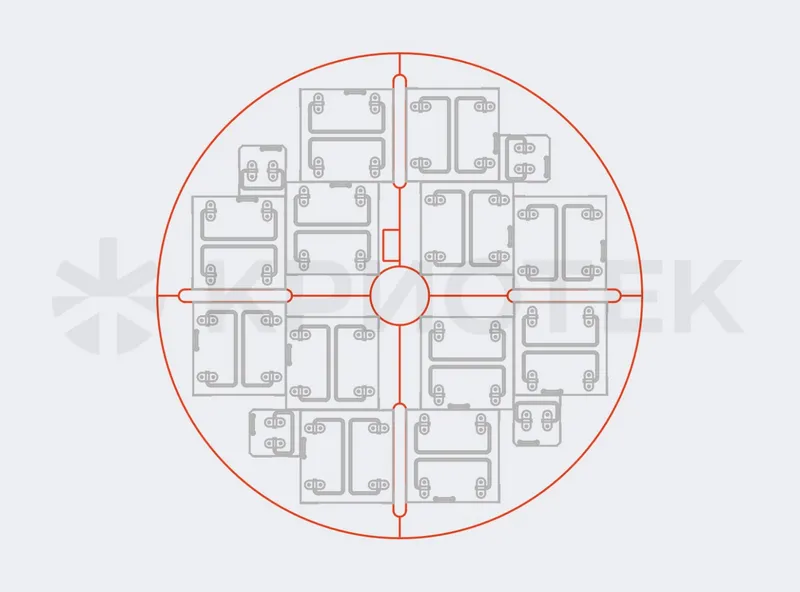

Извлечение квадратных стеллажей из криохранилища серии MVE HE 800

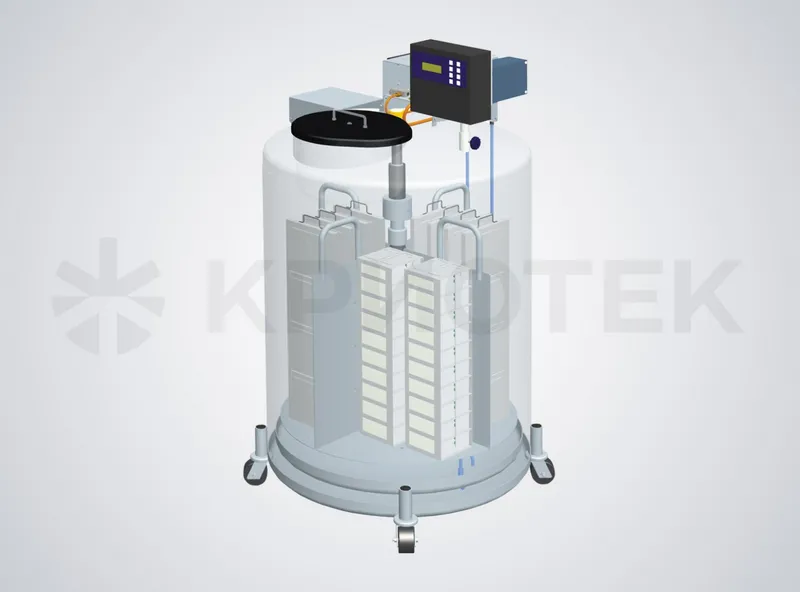

Внутренний разрез криохранилища серии MVE HE 800

Description Characteristics

Avenue

The MVE High Efficiency 800 series cryopreservers provide storage of biomaterials in liquid nitrogen vapors at a temperature of -190°C. Available in three unique sizes, they provide maximum sample density and long storage time.

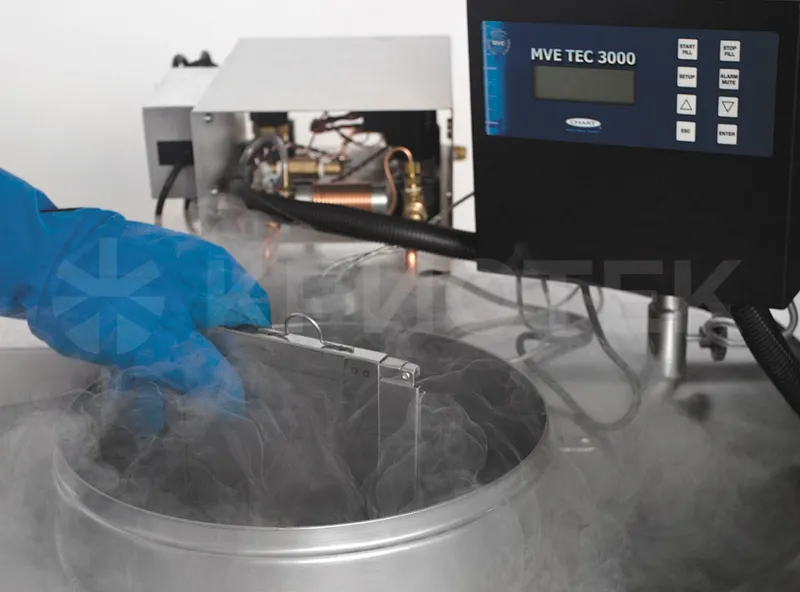

Comes with TEC 3000 electronics.

Distinctive features:

Storage of samples in the dry phase

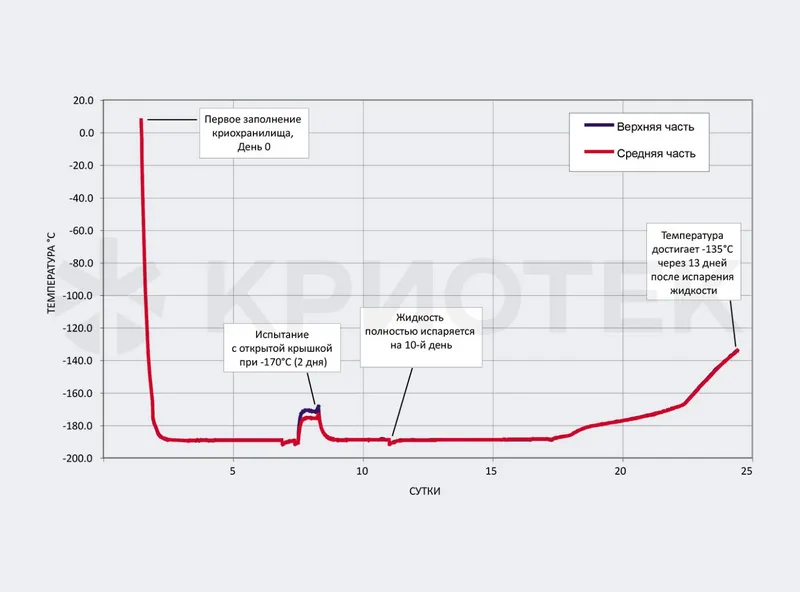

The temperature on the top shelf of the rack is -190°C
Lowest lifting height of the sample loading/unloading rack
Largest liquid nitrogen capacity up to platform level
Backup battery (optional)

Spare parts warranty 2 years

Vacuum system warranty 5 years

Maximum storage capacity
Test tubes of 1.2 and 2 ml (with internal thread)	18200
Number of cryobox racks per 100 cells	12
Number of mini racks for cryoboxes for 25 cells	4
Number of shelves in the rack	14
Operational characteristics
Volume of liquid nitrogen for filling cryopreservation without storage system, calculated	420 l
Volume of liquid nitrogen for filling the cryopreservation to the platform, calculated	55 l
Cryopreservation dimensions
Internal diameter of the neck	317 mm
Usable internal height	781 mm
Inner diameter	731 mm
Total height, including autofill system	1556 mm
Required doorway width**	813 mm
Required doorway width for cryo storage with handles **	843 mm
Empty cryopreservation weight *	225 kg
Weight of liquid nitrogen cryopreservation*, estimated	530 kg

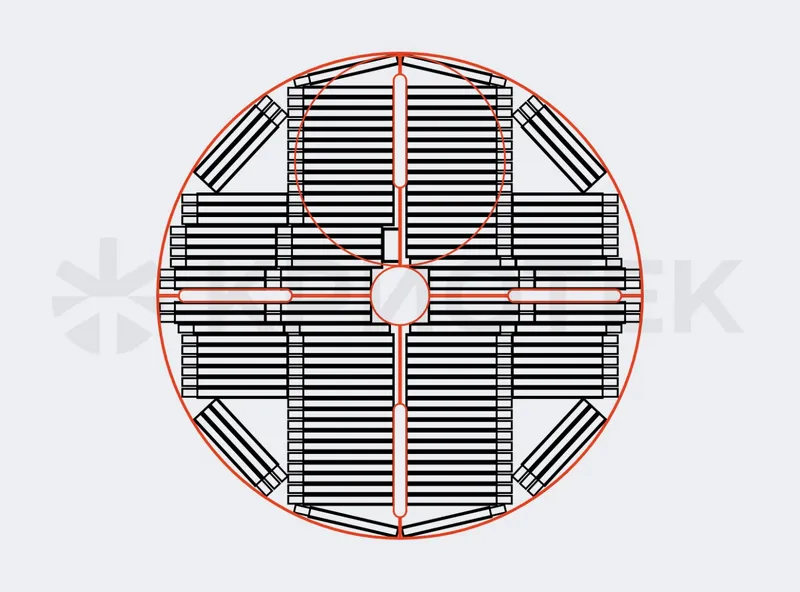

Cryopackage capacity	Total packages	Packages per frame	Quantity of frames
791 OS/U Medsep (25 ml)	1632	8	204
4R9951 (50 ml)	896	7	128
4R9953 (250 ml)	416	4	104
4R9955 (500 ml)	304	4	76
DF200 (200 ml)	236	4	59

* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.
