MVE 616

Article: MVE 616

Price:

Production: USA

Внутренний разрез криохранилища серии MVE 600

Description Characteristics

The MVE 616 cryogenic storage facility provides stable cryogenic storage of up to 16,900 1.2 / 2.0 ml cryoprobes. These cryopreservers provide the maximum density and the longest storage time. The MVE B series is designed for storing biomaterials in the liquid nitrogen phase.

Comes with TEC 3000 electronics.

Distinctive features:

Storage of samples in liquid nitrogen
Wide neck
Low lifting height of the sample loading/unloading rack
The largest volume of liquid nitrogen
2-step folding stand
Backup battery (optional)

Spare parts warranty 2 years * Vacuum system warranty 5 years

Maximum storage capacity
1.2 and 2 ml test tubes (with internal thread)	16900
Number of cryobox racks per 100 cells	12
Number of mini racks for cryoboxes for 25 cells	4
The number of shelves in the rack	13
Cryosolominy high reliability (0.5 ml)	50400
Canisters (73 mm)	60
Glasses in a canister / straws in a glass	7:48
Performance characteristics
Liquid nitrogen volume without storage system	240 l
Cryopreservation dimensions
Inner diameter of the neck	638 mm
Usable internal height	749 mm
Inner diameter	638 mm
Total height with autofill system	1161 mm
Required width and depth of the opening**	852х878 mm
Empty cryopreservation weight *	145 kg
Weight of liquid nitrogen cryopreservation*, calculated	339 kg

Cryopackage capacity	Total packages	Packages per frame	Quantity of frames
791 OS/U Medsep (25 ml)	1372	7	196
4R9951 (50 ml)	612	6	102
4R9953 (250 ml)	336	4	84
4R9955 (500 ml)	248	4	62
DF200 (200 ml)	200	4	50
DF700 (700 ml)	116	4	29

* Without a sample storage system.
** The minimum width of the doorway required to bring the vessel into the room. The area at the base may vary. Contact technical support for detailed drawings.
Complies with MDD 93/42 / EEC, the EU Medical Equipment Directive. Cryopreservation facilities are included in the UL/C-UL list.

For this product we recommend

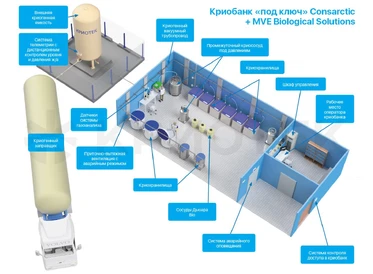

MVE + Consarctic Cryobank
