EC-120/4 SB
Article:
Нет в наличии
Price:
Production: USA

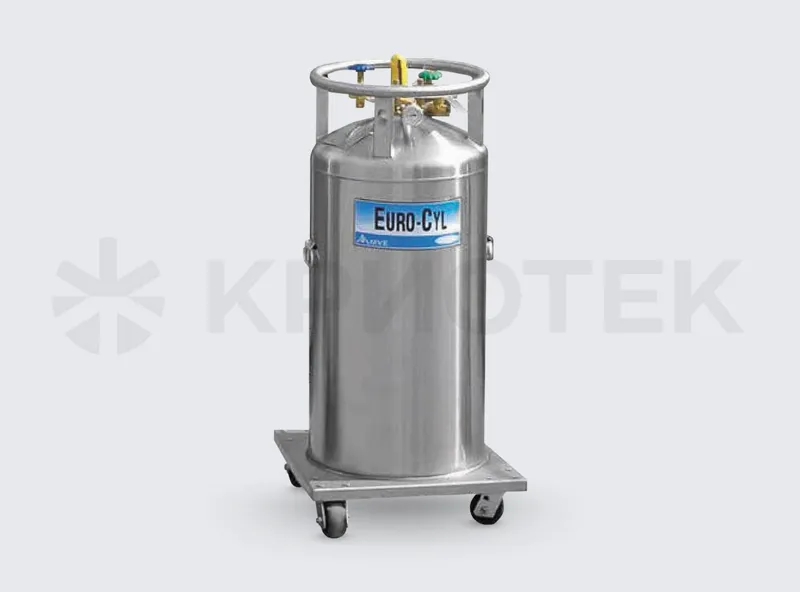

EuroCyl 120/4 SB pressurized cryogenic vessel with capacity of 120 liters for transportation and storage of cryogenic liquids. It is a vessel-gasificator with screen vacuum insulation to minimize losses of cryogenic liquids due to evaporation. For laboratory and industrial applications.
| Volume of liquid product (gross), l | 120 |
| Volume of liquid product (net), l | 114 |
| Nominal evaporation rate (N2),% per day | 2 |
| Nominal evaporation rate (O2-Ar),% per day | 1.4 |
| Pressure relief valve, (bar) | 1.5 / 4 (on request) |
| Standard | TPED |
| Rupture disc pressure, bar | 7 |
| Diameter of container, mm | 508 |
| Dimensions of base (LxW), mm | 650х675 |
| Base type | square roller base |
| Container height, mm | 1290 |
| Empty vessel weight, kg | 94 |
| Maximum gross weight (capacity + cryogenic product, pressure 0 bar) N2, kg | 186 |
| Maximum gross weight (capacity + cryogenic product, pressure 0 bar) O2, kg | 224 |
| Maximum gross weight (capacity + cryogenic product, pressure 0 bar) Ar, kg | 253 |
