EC-180/4

Article:

Временно недоступен для заказа

Price:

Production: USA

Description Characteristics

Avenue

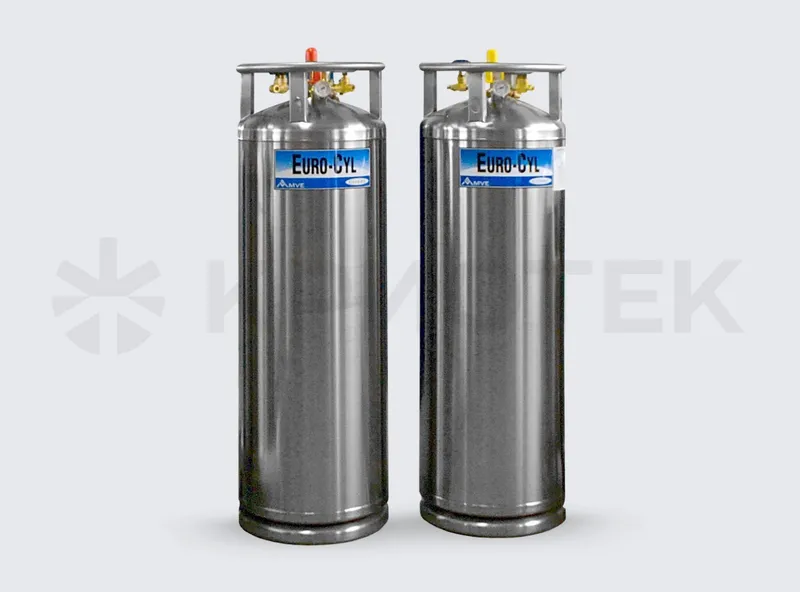

EuroCyl-180/4 pressurized cryogenic vessel with capacity of 196 liters for transportation, storage of cryogenic liquids and delivery of liquefied gases. It is has with screen vacuum insulation and a pressure lifting system to ensure a high speed of liquid extraction or delivery. For laboratory and industrial applications.

Volume of liquid product (gross), l	196
Volume of liquid product (net), l	186
Nominal evaporation rate (N2),% per day	1,9
Nominal evaporation rate (O2-Ar),% per day	1,3
Pressure relief valve, (bar)	1,5 / 4 бар
Standard	TPED
Rupture disc pressure, bar	7
Diameter of container, mm	508
Dimensions of base (LxW), mm	508
Base type	round
Container height, mm	1613
Empty vessel weight, kg	109
Maximum gross weight (capacity + cryogenic product, pressure 0 bar) N2, kg	259
Maximum gross weight (capacity + cryogenic product, pressure 0 bar) O2, kg	321
Maximum gross weight (capacity + cryogenic product, pressure 0 bar) Ar, kg	369
