XRP-120/1.5
Article:
150
Нет в наличии
Price:
Production: France-USA

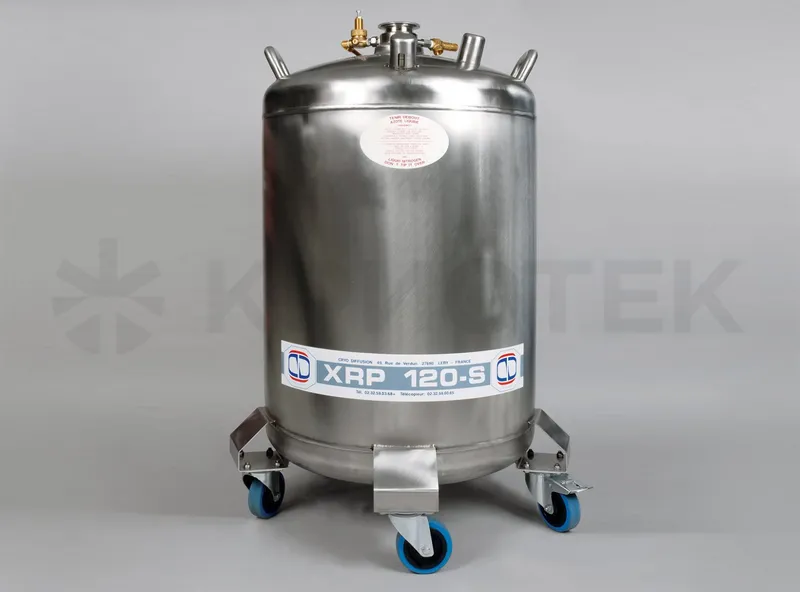

Vertical vessel XRP 120 with a capacity of 127 liters under pressure up to 1.5 bar for storage and delivery of liquid nitrogen and argon. It is a "vessel in a vessel" made of non-magnetic stainless steel. Equipped with flange Pneurop NW 50, with internal diameter of a neck 50 mm, which fixes the head of the fluid transfer device TAP, equipped with a pressure regulator, pressure gauge and safety valve. The vessel is usually supplied with a plug. For laboratory and industrial applications.
| Total capacity, liters | 127 |
| Empty weight, kg | 62 |
| Mass of a full vessel with liquid nitrogen, kg | 164.5 |
| Losses of liquid nitrogen, l/day (without head of fluid transfer device) | 1.6 |
| Maximum working pressure, kg/cm2 | 1.5 |
| Neck I.D., mm | 50 |
| Overall height, mm | 1044 |
| Internal height, mm | 853 |
| O.D.,mm | 570 |
| Standard | DESP 97/23 CE |
| Flange NW50 | yes |
