Haier Biomedical CJ-L37
Article:
HB-CJ-L37
Price:
Production:
Description
Characteristics

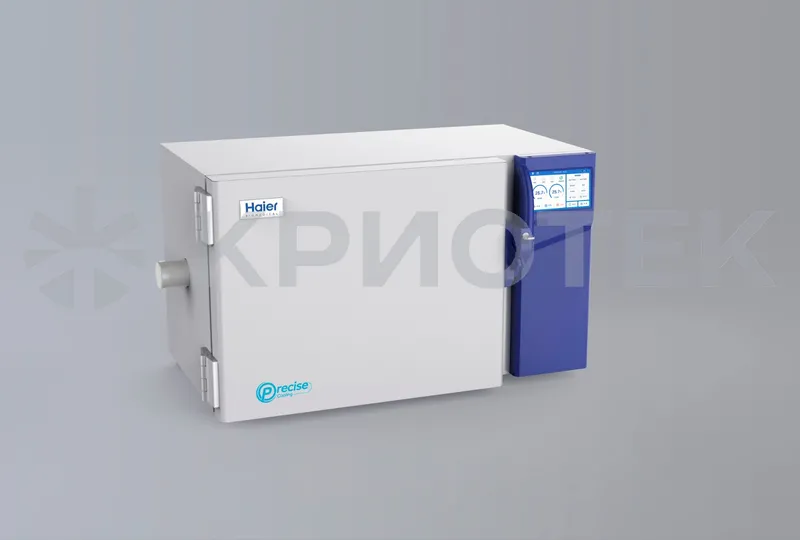

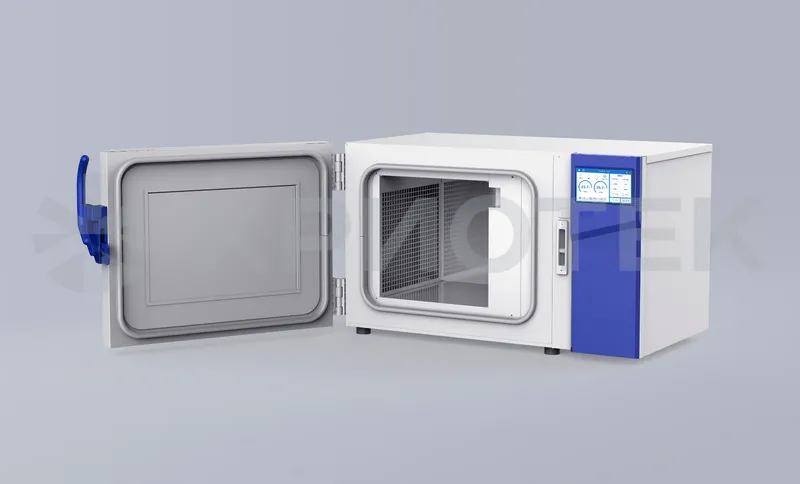

Haier Biomedical CJ-L37 Programmable Freezer is a software-controlled cryo-freezer with a working volume of 37 L.
Cryogenic freezing of live cells and other biomaterials down to -196°C is performed using cryobags and cryovials.
- Continuous monitoring of the freezing process
- Maintenance of a constant temperature level
- High-precision temperature control
- Monitoring of temperature fluctuations within a range of ±0.5°C
- One-button start of the freezing program
- 7'' touch screen
- Real-time monitoring of the liquid nitrogen level
- Warning when the liquid nitrogen level drops to 20%
- Real-time temperature data logging
Standard Package Includes:
- Programmable cryo-freezer
- Supply dewar
- Flexible metal transfer line
- Temperature sensors
- Personal computer with software
| Model | CJ-L37 |
| Working Volume | 37 L |
| Minimum Temperature | -180 °C |
| Biomaterial Freezing Rate | 0.1 - 99.9 °C/min |
| Maximum Temperature | 50 °C |
| Biomaterial Thawing Rate | 0.1 - 12 °C/min |
| Temperature Uniformity | < 2 °C |
| Power Supply | 220V / 50/60 Hz |
| Monitor Screen | 7" Color LCD Touch Screen |
| Refrigerant | Liquid Nitrogen |
| Liquid Nitrogen Monitoring | Warning at 20% level of required amount |
| External Dimensions (W x D x H) | 941 x 571 x 527 mm |
| Internal Dimensions (W x D x H) | 330 x 340 x 330 mm |
| Packaged Dimensions (W x D x H) | 1050 x 700 x 705 mm |
| Weight (empty/operational) | 73 / 114.5 kg |
| Serial Port | USB / RS232 |
Pressure Vessel
| Model | YDZ-100/1.5 |
| Volume 100 L | 100 L |
| Static Evaporation Rate | 1.3 L/day |
| Liquid Delivery Rate | 4 L/min |
| Height | 1185 mm |
| Outer Diameter | 606 mm |
| Weight (Empty Vessel) | 75 kg |
| Weight (Filled Vessel) | 157 kg |
| Standard Operating Pressure | 0.09 MPa |
| Maximum Operating Pressure | 0.15 MPa |
| 1st Stage Relief Valve Set Pressure | 0.15 MPa |
| 2nd Stage Relief Valve Set Pressure | 0.24 MPa |
| Pressure Gauge Range | 0 - 0.25 MPa |
